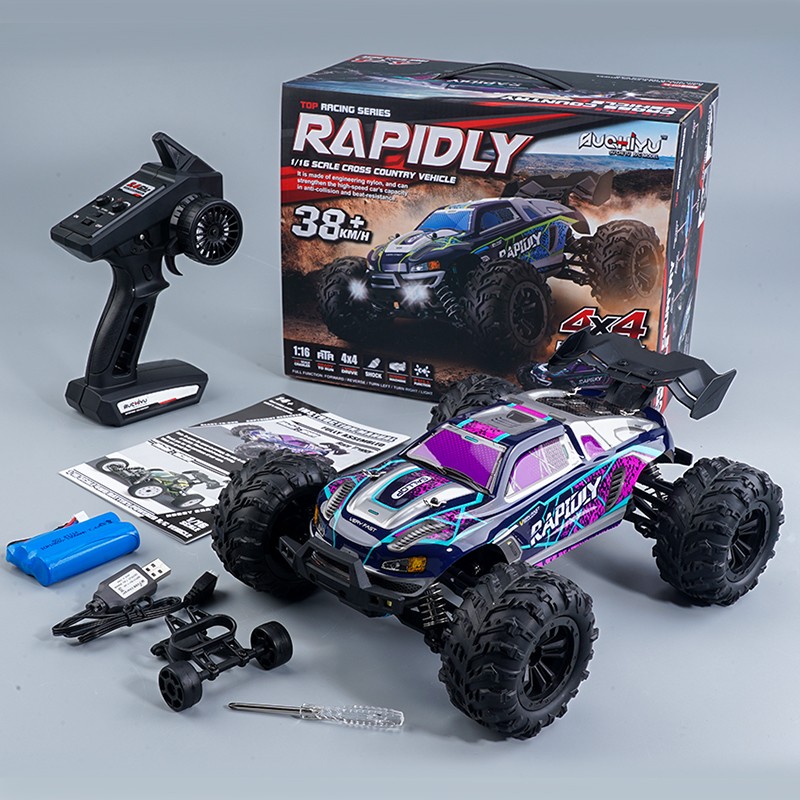

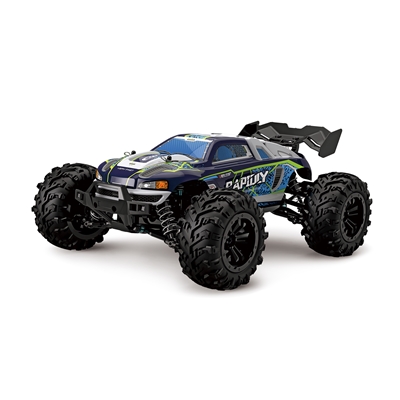

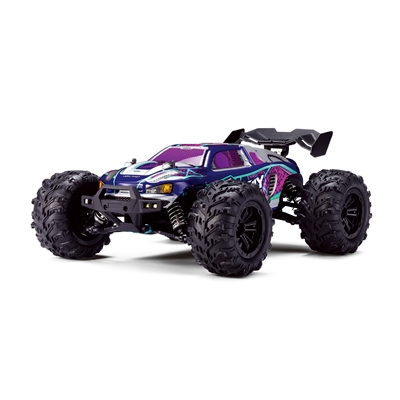

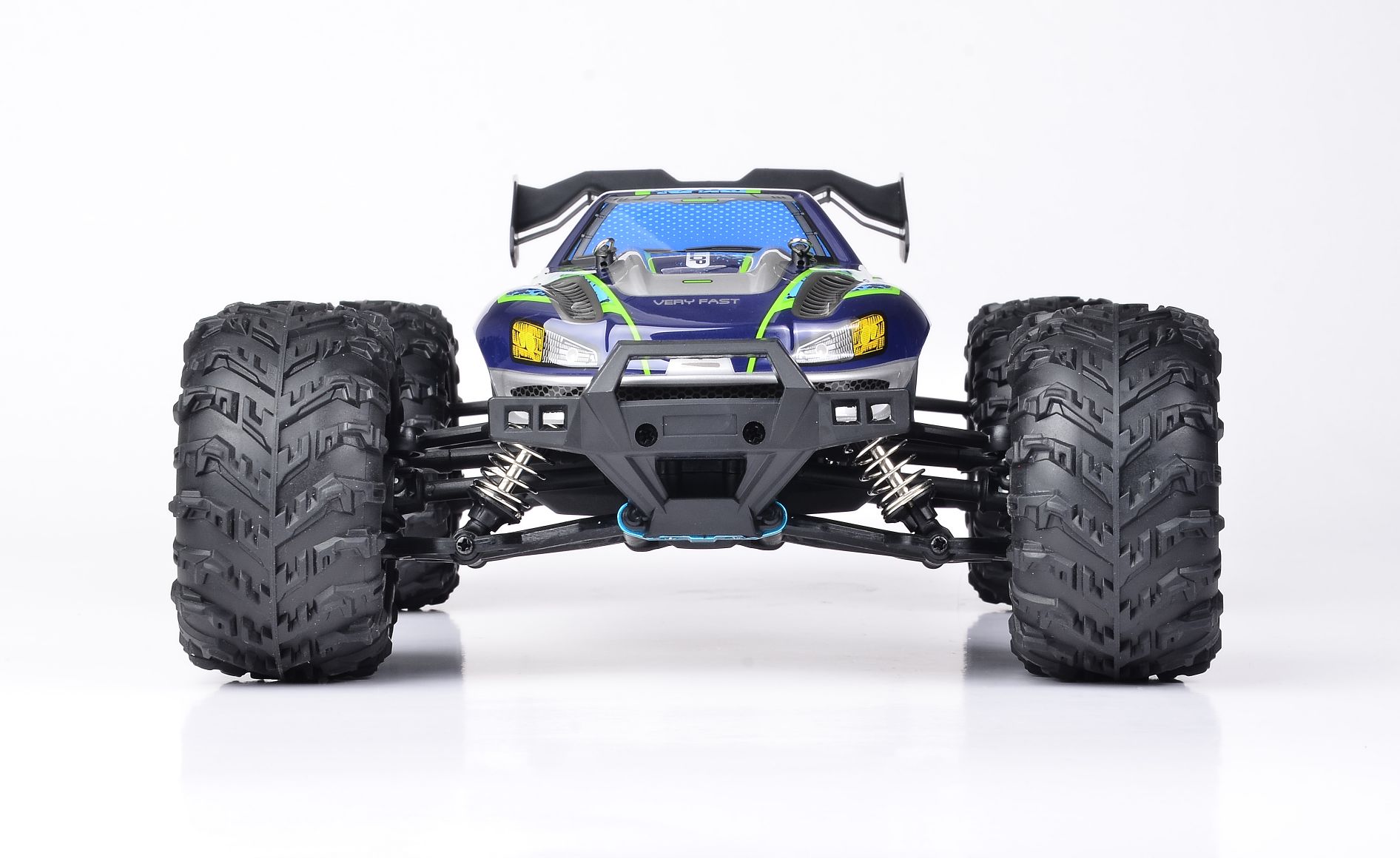

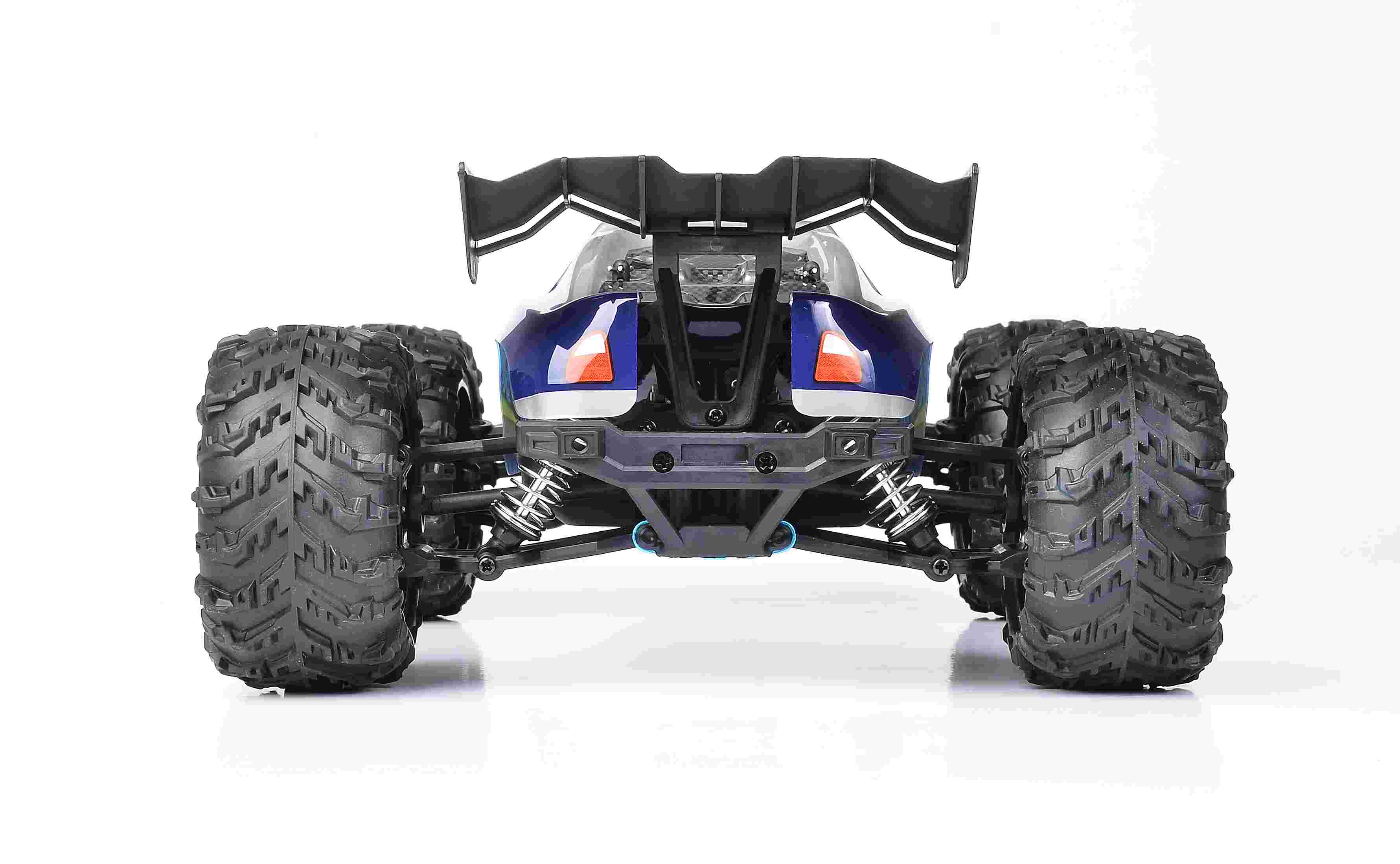

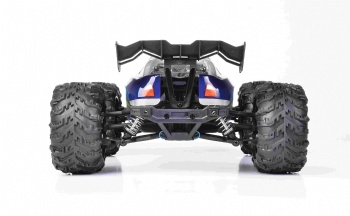

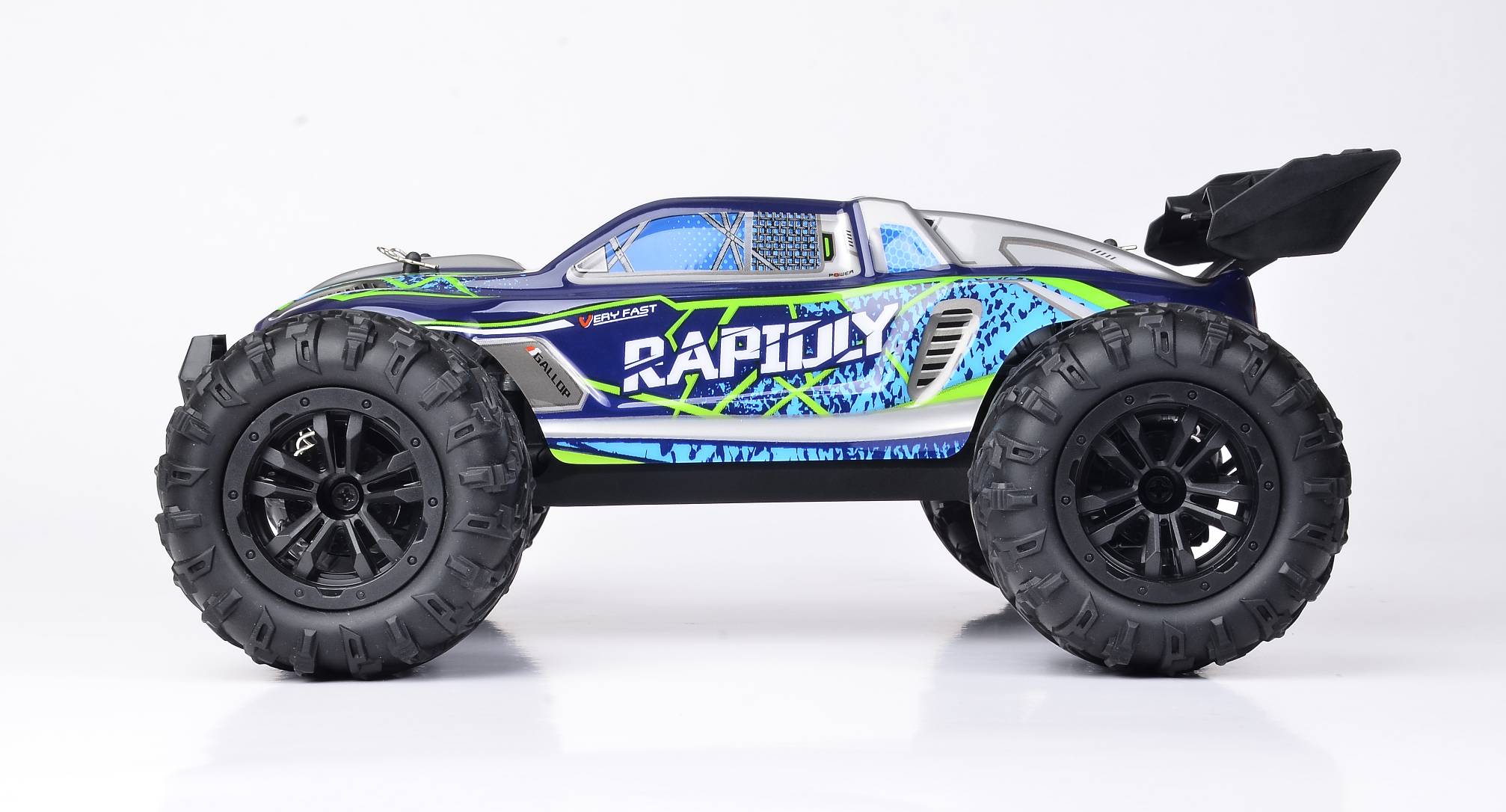

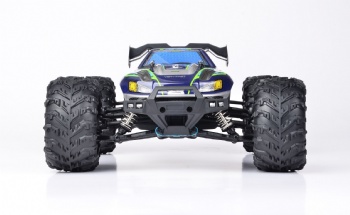

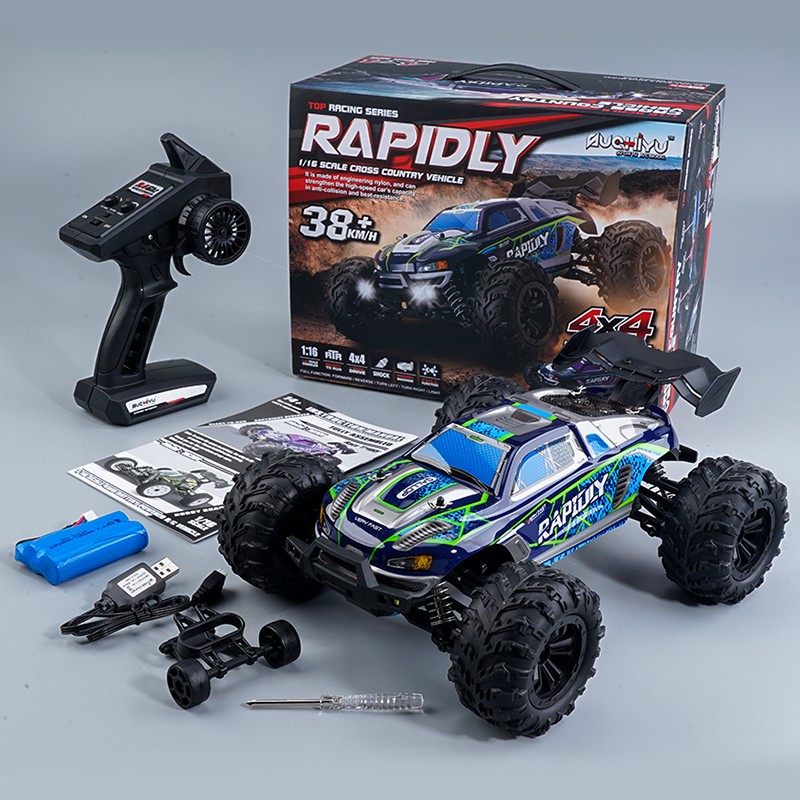

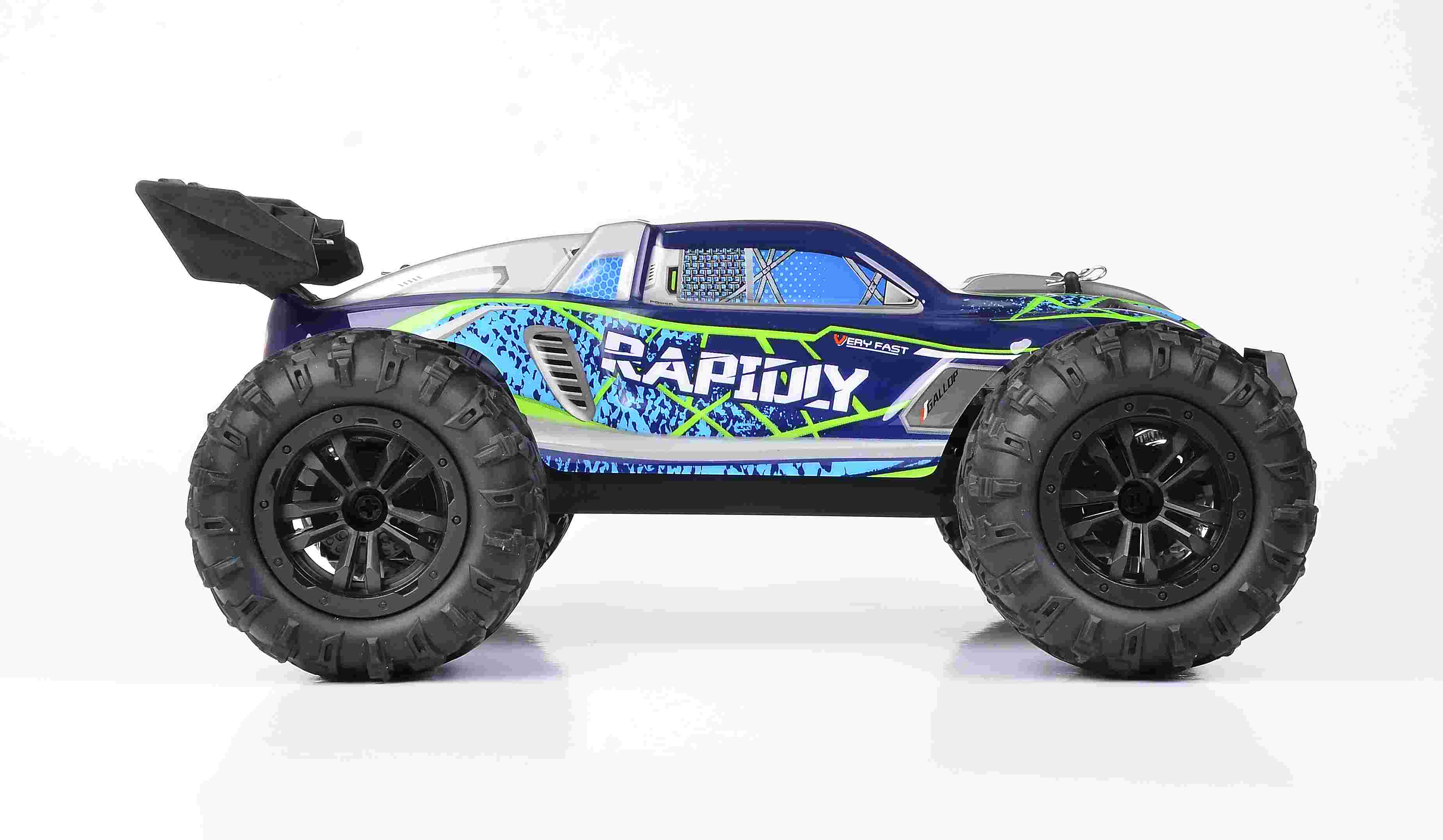

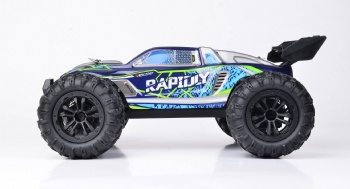

SCY-16101 1/16 scale electric 4WD R/c car(Rapidly)

SCY-16101 1/16 scale electric 4WD R/c car(Rapidly)

Item No. SCY-16101
Product Name 1/16 Remote Control Four-wheel Drive Monster Truck (Rapidly)
Packing Method English Portable Color Box
Color Blue/Purple
Number of Packing 8 PCS
Product Specifications 30*23*11.5 CM
Remote Control Specifications 13*7.5*21 CM
Color Box Specifications 30.6*14.8*24.1 CM
Outer Box Specifications 61.5*31.5*50 CM
Gross Weight/Net Weight 13.9/12.8 KGS
Body Weight 930g
Remote Control Weight 170g
Including Packaging Weight 1600g
Light Configuration LED Headlight
Differential Structure Planetary Gear Differential (Nylon)
Material Hardware; Electronics; Plastic
Motor RC390 High-speed Carbon Brush Strong Magnetic (Magnetic Protection + Heat Sink)
Electric Regulator/Receiver 30A 2S Integrated Control (Splashproof)
Body Battery 7.4V 1300mAH 10C lithium-ion battery (T plug)
Servo 5-wire, 17g
Remote control battery 3 "AA" (not included)
Charger USB cable charger
Frequency 2.4GHz (supports multiple cars competing in the same field)
Remote control distance ≥80 meters
Remote control category Full-proportional synchronous control system (gun control)
Control time 15-18 minutes (continuous full speed running)
Charging time 3-3.5 hours (USB balance charging)
Wheelbase parameters Wheelbase: 185mm; Wheelbase: 188mm; Wheel diameter: 85mm;
Speed 38 km/h
Protection function Charging protection, stuck protection, high temperature protection, low voltage protection
EMAIL INQUIRY

1. The simulation structure design is adopted, which has the control feeling of a real car, realizing full scale stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turning, right turning;

2. Applicable sites: flat, sandy, muddy and grassland.

3. Four wheel drive: front and rear vertical spring damping, double wishbone independent suspension system;

4. 2.4G full scale synchronous remote control system Full proportional throttle/steering;

5. 2.4G splash proof four-way 30A integrated electric regulating/receiving;

6. Front wheel cross ball joint transmission shaft, rear wheel split dog bone transmission shaft;

7. Five wire 17G steering gear;

8. Super battery power: 7.4V, 18650-1300mAh Li ion battery (T plug), discharge rate 10C;

9. The whole vehicle adopts 16 ball bearings;

10. Metal second floor, metal front and rear arm code, metal middle drive shaft;

11. High toughness explosion-proof PVC car shell is adopted;

12. Equipped with LED headlamp; (Three gear mode: constant light, slow flash, fast flash);

13. Equipped with lifting wheel;

14. Simulated big tire with strong grip;
